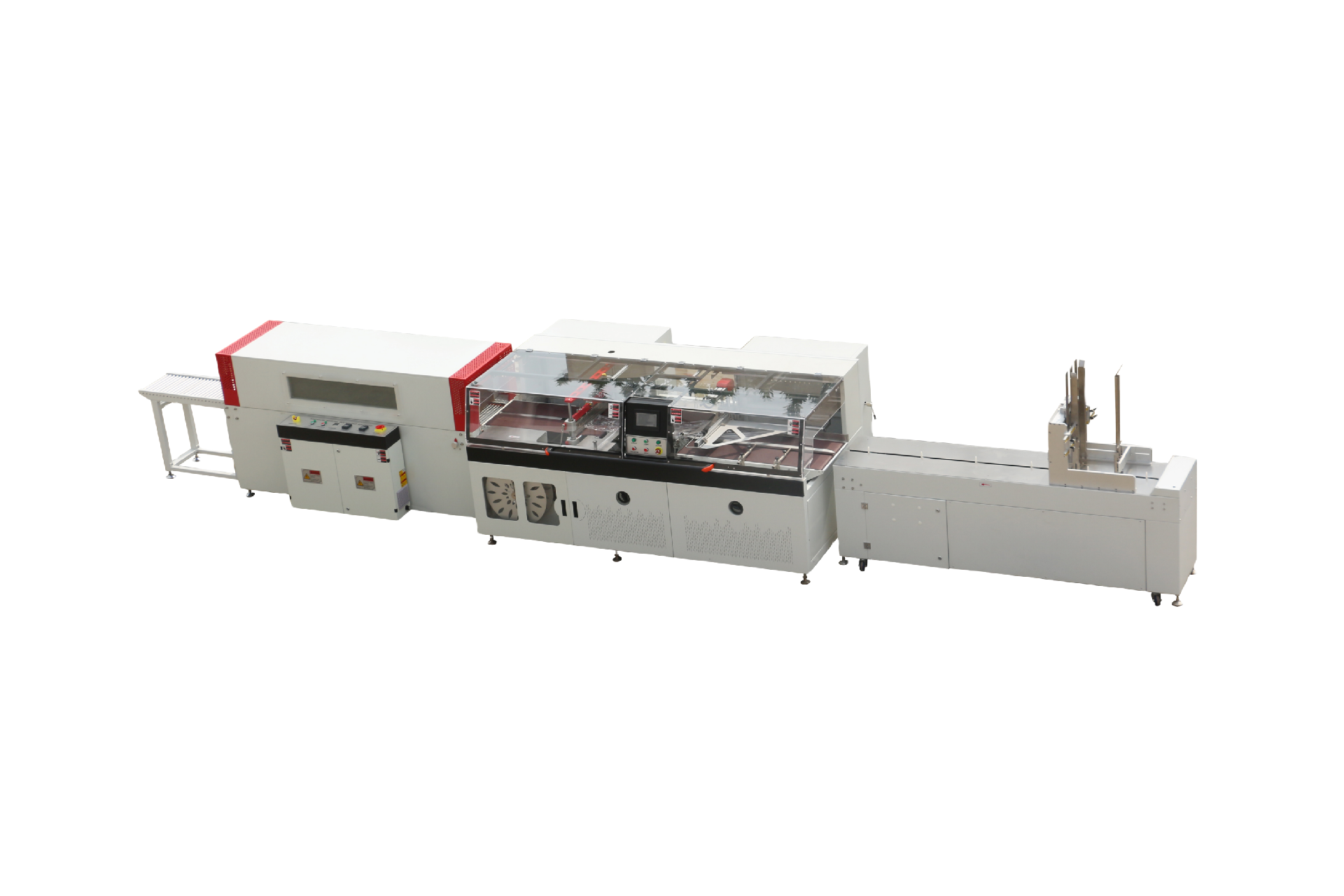

连续式移刀型封切收缩包装机
本机采用先进的边封及往复式横封技术,具有持续封口动作。伺服控制系统,能在高效的前提下实现完美的热缩包装;

一键调节功能:按照产品实际尺寸输入即可完成调试;

One-click adjustment function: the actual size of the product can be input to complete the debugging;

边封刀可持续性的完成封切动作,使得速度最高可达80pcs/min;

Side blade seals continuously which can reach max. speed of 80pcs/min.;

横封刀往复式移动设计与产品联动,可满足不停机生产

The reciprocating movement design of cross sealing bar is linked with the products to meet the requirements of continuous production;

前端进料输送机可选指推料机或智能拉距输送机;

The front feed conveyor can be selected as a finger conveyor or an intelligent seperating conveyor;

在移刀驱动伺服电机控制方面配置了具有运动规划、多轴插补、连续插补、比较输出等功能的专用运动控制器来实现设备的高速可靠运行。

The servo motorcontol of cross moving cuter, a specialmotion controller with motion planning, multi-axis interpolation, continuous interpolation,comparison output andother functions is configured to realize the high-speed and reliable operation of the equipment.

型号ModelGH-3015CMSF-5030LG
功率Power7.5kw21kw
电源 Power SupplyAC 220V 1/3PH 50/60HZAC 220/380V 3PH 50/60HZ
包装尺寸Packing SizeL≤500mm W≤300mmW+H≤450mmH≤150mm炉腔尺寸Chamber Size LxW x H2000x 500x 300mm
移刀长度 Motion Blade Length490mm490mm
包装速度 Packing Speed0~80pcs/min.0~80pcs/min.
工作台高度 Working Table Height900±25mm900±25mm
适用收缩膜Shrink FilmPOFPOF
机械尺寸 Machine Size LxW xH2935 x 1685 x 1610mm2300 x 985 x 1260mm
木箱尺寸Crate Size LxWxH3035x 1785 x 1810mm2400x 1085 x 1460mm
毛净重G./N.Weight1200/1000kgs650/570kgs
